Introduction
Single shaft shredder has been specially designed for waste plastic products with small volume and wall thickness. This series of shredders have a tangential in-feed to eliminate the need for a hydraulic feeding system. Outboard bearings and E-type smooth rotors with rotor width from 600mm to 1500mm, driven by a reducer. The rotor knife is fixed on the rotor by a moving knife holder. The rotor knife adopts a square knife with a groove in the middle. The 4 corners of the rotor knife can be used alternately, and each knife can be used 4 times continuously. The ultra-low speed of 60rpm combined with the compact design of the shredder itself makes it even quieter when shredding blocks. The plug-and-play intelligent control system guarantees that the equipment is ready at any time and place.

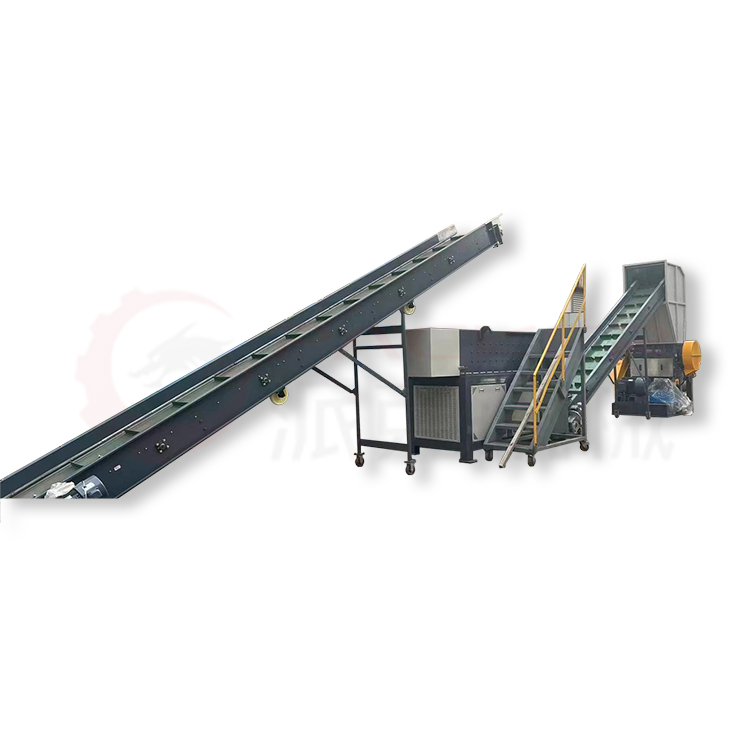

Crusher is using after single shaft shredder. To crush the materials to be more smaller size as customized. Crusher shaft is designed specially according to different materials.
Features:
1. PLC control. Automatic overload protection and auto reverse switch
2. Fix blade has two edges which can be used both sides.
3. Rotate blade has four corners, And can be used one by one.
4. Hydraulic pushing system for pushing materials into shredder chamber. And shred the materials into small pieces.
5. Blade materials can be SKD-II, D2 or as customer requirement.
6. The shredder is running by low speed. And the screen net can be changed easily according to customer’s need.
7. The outer bearing. Bearing is install outside the machines. The main shaft and the machine enclose is sealing by skeleton seal. This can avoid the crushed materials come into the bearing effective. And improve the using life of bearing.
Specification
| Capacity | Motor power(KW) | Fix blade(pcs) | Rotary blade(pcs) | Rotary diameter(mm) | Shredding effective length(mm) |
| 300-500kg/h | 22 | 2 | 30 | 270 | 600 |
| 800-1000kg/h | 45 | 4 | 60 | 450 | 800 |
| 1500kg/h | 75 | 4 | 69 | 450 | 1200 |
| 2000kg/h | 55*2 | 4 | 87 | 550 | 1500 |
Deliver, Shipping And Serving
Delivery: 30 days after getting the payment.
Shipping: By sea
Service: 1 year guarantee. After guarantee. We will keep all parts as cost price for our customers. And service for all life.
Servicing:
1.Professional technical team for offering our customers professional suggestions. To get most reasonable technical for the production line.
2.Sales will follow the order and report to customer the production real situation every one week.
24 hours online-service and help customers to solve problems asap. Offer all necessary documents and manual book to customers for helping to installation machines. We also offer technical to be at customer factory for installation and testing. Service whole life for our customers.
