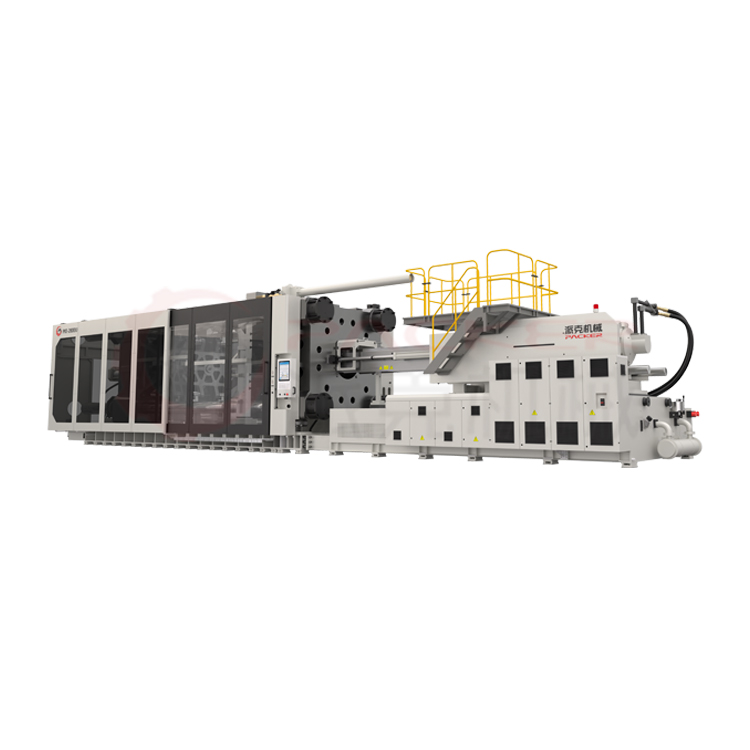

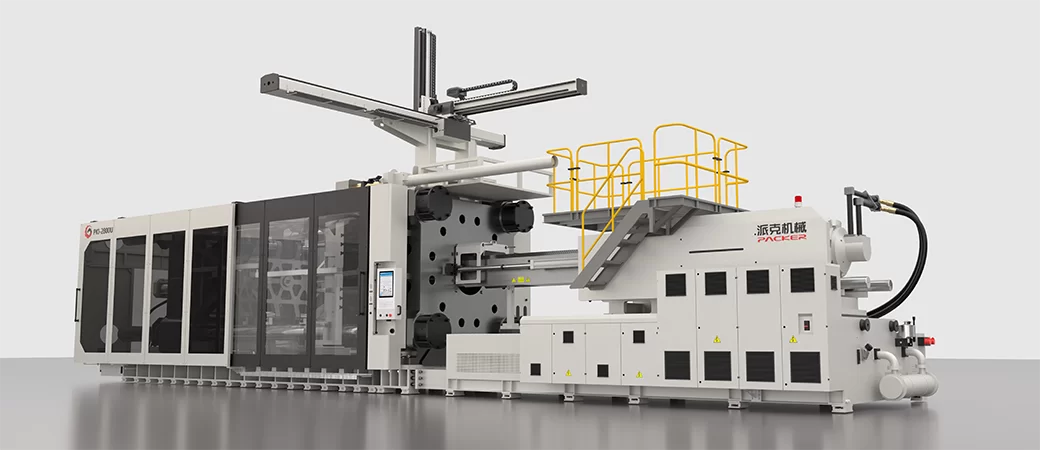

3 Platen plastic injection machine - Rugao Packer Machinery

3 platen plastic injection moulding machine is high electric engery saving. Better moulding stability and saving cooling water consumption.
1.Clamping unit: Big force. High speed and stable movement. Mechanical and hydraulic eject device with once of multiple eject function.
2.Injection unit: Screw with optimum design. Wild application and excellent plasticization and high efficiency. Decompression device to avoid plastic material to be dripped.
3.Hydraulic unit. System pressure is controlled through proptional valve. In additional. A quild mold clamping device and fast-respond control valve are also fitted on the unit.
4.Control system: KEBA control system. To control whole system and warning any mistake in the machine running.

SPECIFICATION

ITEM	SPECIFICATION	UNIT	PKI110X-J5			PKI130X-J5			PKI170X-J5			PKI230X-J5			PKI270X-J5			PKI300X-J5			PKI330X-J5			PKI420X-J5			PKI470X-J5			PKI530X-J5			PKI600X-J5			PKI700X-J5			PKI800X-J5			PKI1080X-J5			PKI1280X-J5
INJECTION UNIT	Screw Diameter	mm	35	38	42	38	42	45	45	40	48	50	45	55	55	50	60	55	60	65	65	60	70	70	75	80	80	85	90	85	90	95	90	95	100	95	100	105	100	105	115	100	110	120	120	110	130
	Screw L/D Ratio	L/d	26.4	24.3	22	24.3	22	20.5	20	24.8	20.6	23.96	26.6	21.8	24.8	27.3	22.7	24.8	22.7	21	23	24.9	21.4	23.6	22	20.6	20.9	19.7	18.6	22.3	19.7	18.6	21.1	20	19	21.2	20.1	19.1	23	21.9	20	24.2	22	20.2	22	24	20.3
	Shot size	cm3	168	198	241	215	263	302	360	284	410	490	397	593	652	538	775	653	777	912	1028	876	1192	1436	1650	1876	2061	2327	2609	2327	2609	2907	2790	3105	3440	2977	3300	3636	4082	4500	5398	3970	4802	5716	6600	5545	7746
	Injetion Weight	g	153	180	219	196	239	275	328	258	373	446	361	540	593	490	705	594	707	830	935	797	1085	1307	1502	1707	1876	2118	2374	2118	2374	2645	2539	2826	3130	2709	3003	3309	3715	4095	4912	3886	4461	5566	6006	5046	7049
	Injetion Rate	g/s	95	122	136	122	150	172	122	96	138	128	103	155	155	128	184	224	266	312	233	198	270	296	340	386	394	445	498	405	521	584	520	580	642	562	623	686	739	815	978	716	867	1031	742	604	870
	Plasticizing Capacity	g/s	11	12	15	11	14	17	20	16.2	21	24	19	29	27	23	33	27	31.1	36.5	36.5	31.1	42	41	45	49	42	51	60	63	74	88	76	85	95	72	85	95	85	94	113	88.3	100.8	120	106	82	135
	Injection Pressure	Mpa	219	186	152	176	145	126	178	225	156	170	210	140	200	242	168	200	168	143	187	219	161	192	167	147	158	140	125	166	148	133	161	145	131	158	143	130	201	182	152	195	161	136	172	205	147
	Screw speed	rpm	0-220			0-220			0-185			0-185			0-160			0-180			0-180			0-180			0-130			0-150			0-125			0-130			0-110			0-100			0-90
CLAMPING UNIT	Clamp Tonnage	KN	1100			1300			1700			2300			2700			3000			3300			4200			4700			5300			6000			7000			8000			10800			12800
	Toggle stroke	mm	320			360			430			490			545			590			605			710			780			830			860			900			1040			1100			1300
	Space Bet. Tie-bars	mm	370x370			430x415			480x480			532x532			580x580			630x630			680x680			735x735			780×780			840x830			860x840			910x910			1000x1000			1150x1110			1300x1250
	Max.Mold height	mm	380			440			510			550			580			630			670			720			780			810			860			900			1000			1100			1250
	Min.Mold height	mm	140			140			170			200			210			210			250			250			280			350			350			350			400			500			550
	Ejector stroke	mm	100			120			140			140			145			150			160			160			200			200			220			260			260			320			320
	Ejector tonnage	Kn	45			45			45			70			70			70			70			125			125			125			150			185			212			246			215
GENERAL	Max.pump pressure	Mpa	16			16			16			16			16			16			16			16			16			16			16			16			16			16			16
	Pump motor power	Kw	11			13			15			18.5			22			30			42			37			45			55			55			30+30			37+37			45+45			55+55
	Heater Power	Kw	9.8			9.8			11			16.9			21.55			21.55			22.6			27.2			34.8			34.8			43.5			46.5			58.45			68.45			74.35
	Machine Dimenshion	m	4.2x1.15x1.83			4.5x1.25x1.86			5.1x1.4x2.1			5.5x1.42x2.16			5.9x1.52x2.35			6.0x1.67x2.1			6.8x1.9x2.3			7.5x2.1x2.5			8.0×2.2×2.6			8.7x2.2x2.7			9x2.3x3.7			9.4x2.4x3.8			10.1x2.6x3.8			11.5x2.8x4.0			12.6x2.9x4.0
	Machine weight	T	3.4			3.7			5.2			7			8.6			11			13			18			20			24			28			36			45			60			70
	Oil tank Cap.	L	180			210			240			340			470			590			650			850			1050			1050			1100			1200			1500			1660			2000
