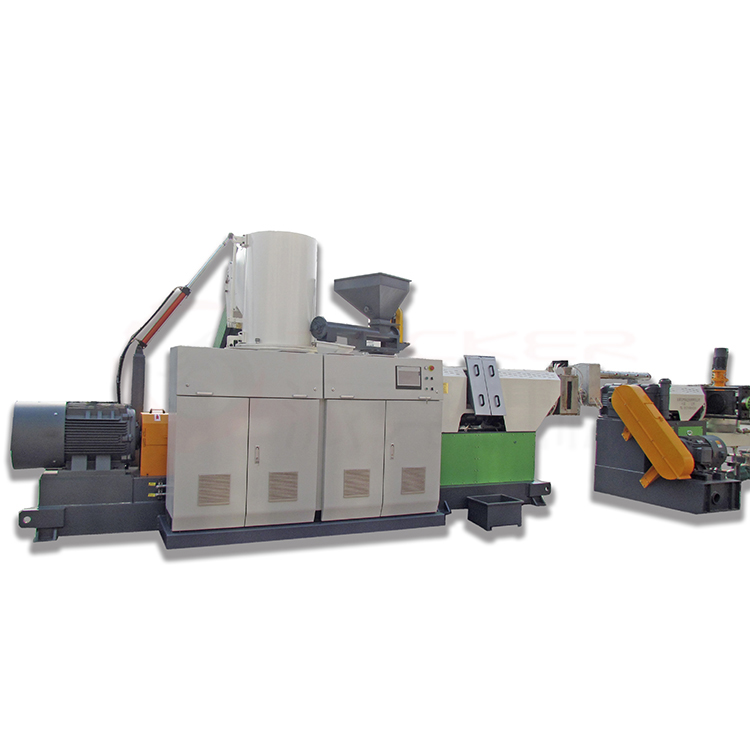

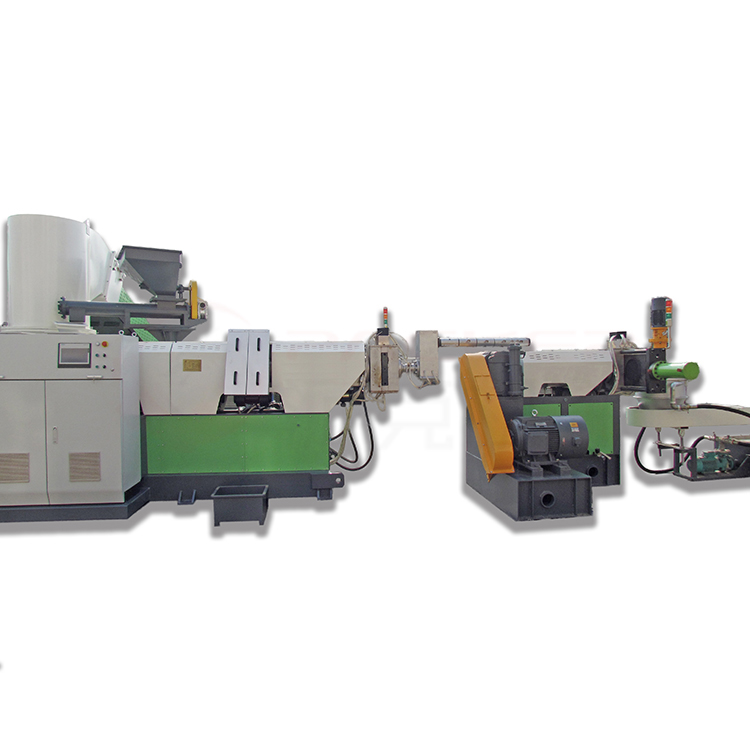

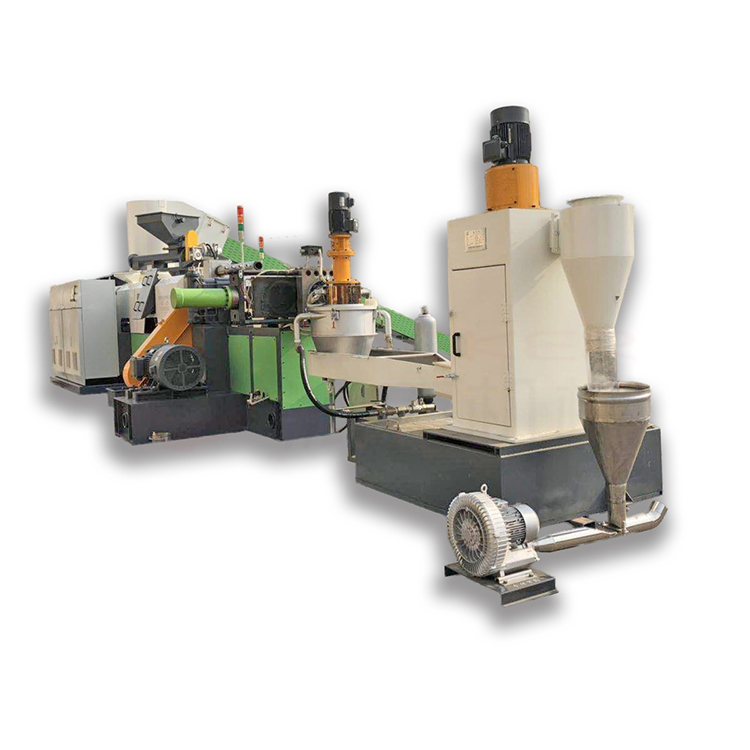

1.Introduction of HDPE LDPE PP films compactor pelletizing machine
HDPE LDPE PP films compactor pelletizing machine is for granulating PP PE films to pellet.

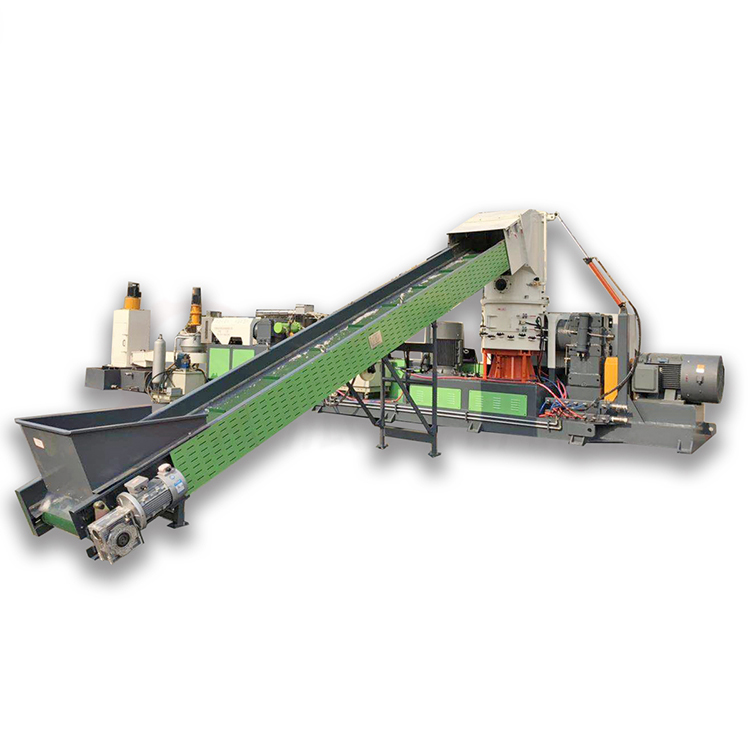

It’s designed with latest technology,a very integrated system which can be used for a wide range of materials,the extruder is combined together with compactor and feeding belt,the raw material will be compacted firstly in the compactor ,then get into screw immediately,in this way,the material feeding is much more stable and the output is bigger,especially for LDPE film,PP bags and other soft material.

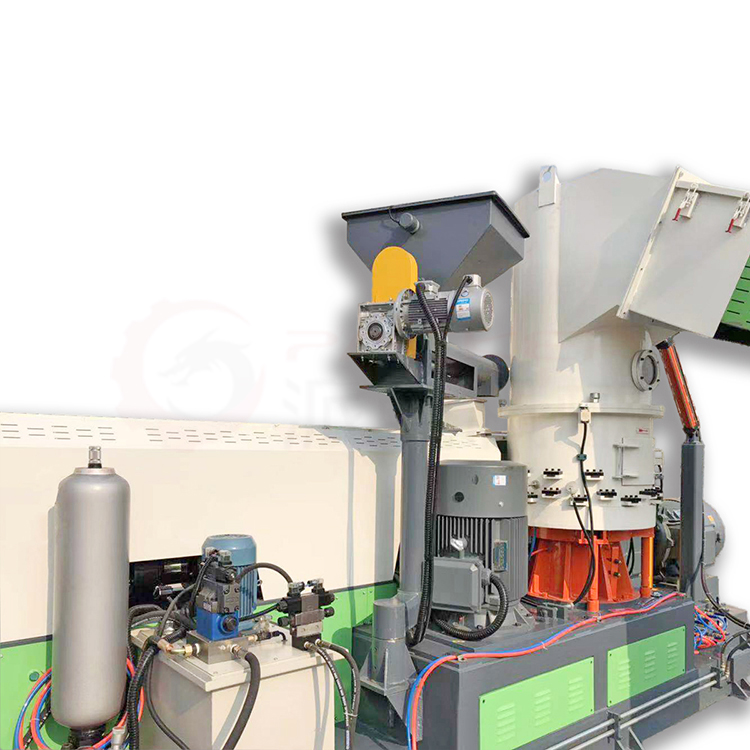

The compactor equipped with cutting blades can process massive material like shopping bags,woven bags,and film in roll,no need to crush the materials in advance.With frequency control,HDPE LDPE PP films compactor pelletizing machine also can process rigid regrind materials.
2.HDPE LDPE PP films compactor pelletizing machine features:
1）It has compactor to crush, agglomerating materials. And press into extruder screw. To improve capacity to be more.
2）Capacity can be from 100kg/h to 1000kg/h.
3）Watering cutting system is running automatic. For cutting pellet. Also we can equip “noodle” type cutter (Cooling tank). As optional for our customer.
4）With non-stop hydraulic screen changer.
5）This line can be single stage or double stages as customer’s requirement.
3.Specification of HDPE LDPE PP films compactor pelletizing machine
| HDPE LDPE PP films compactor pelletizing machine | |||
| Capacity | Compactor diameter(mm) | Extruder motor(KW) | Extruder diameter(mm) |
| 100kg/h | 600 | 90 | 90/33 |
| 500kg/h | 800 | 132 | 130/33 |
| 700kg/h | 1200 | 250 | 160/33 |
| 1000kg/h | 1200 | 315 | 180/33 |
4.Details

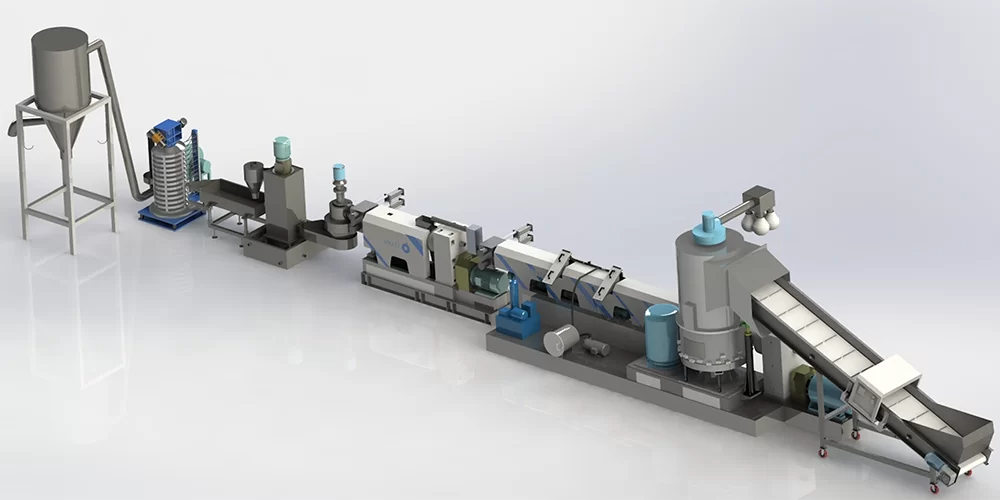

（3D chart)

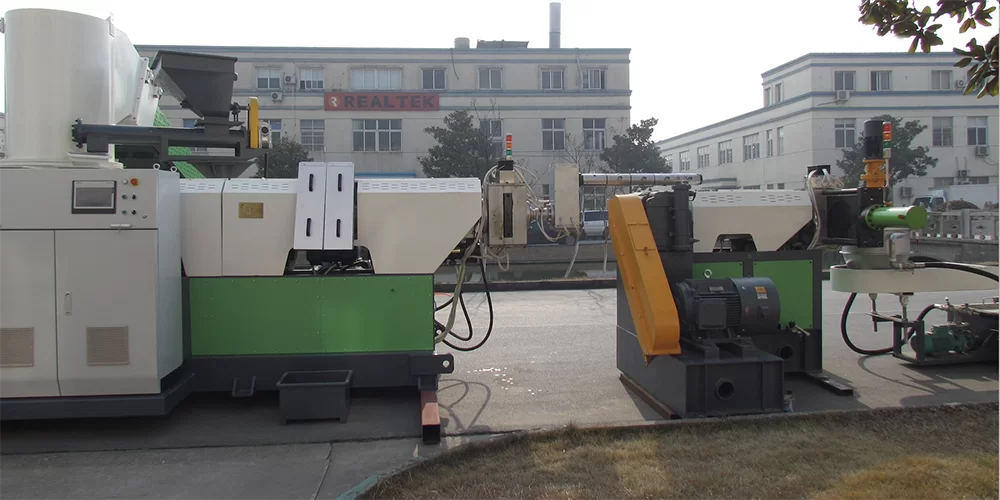

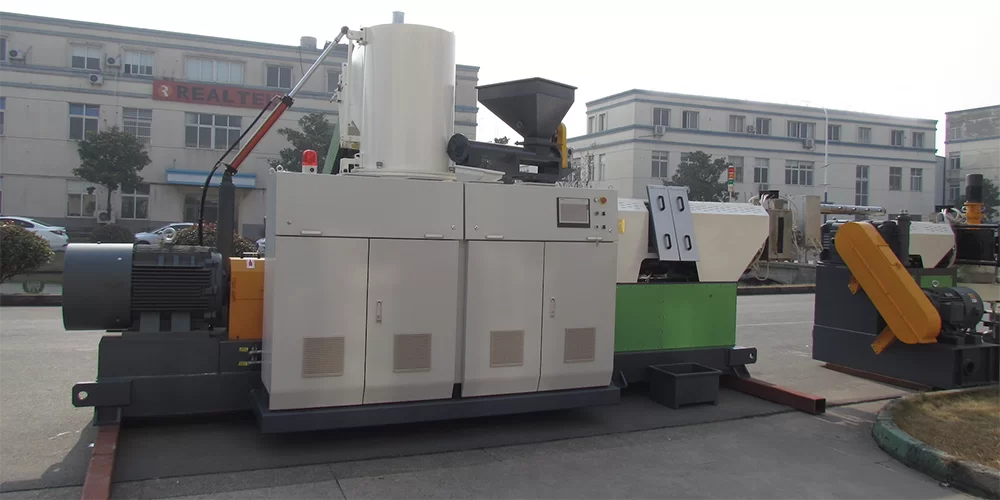

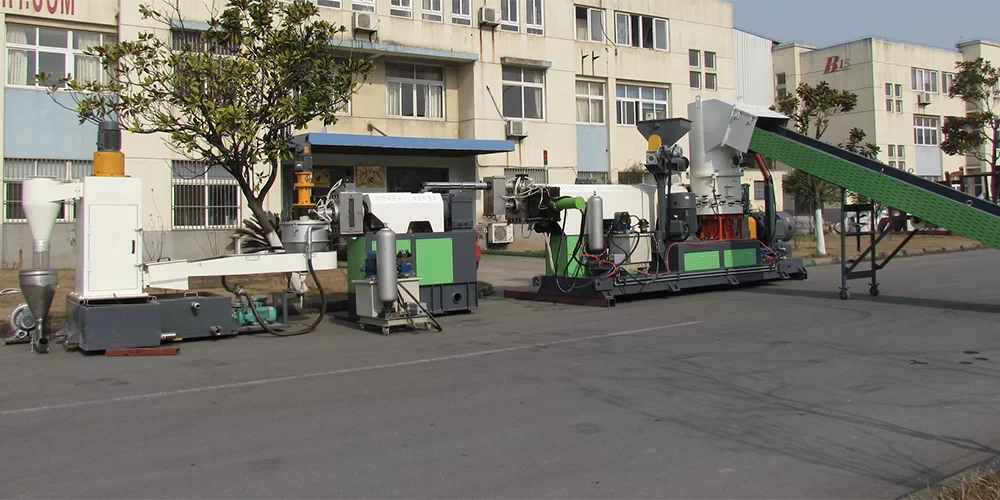

These pictures can better help you understand HDPE LDPE PP films compactor pelletizing machine
Deliver,Shipping And Serving
Delivery: 40-50 days after getting the payment.
Shipping: By sea
Service: 1 year guarantee. After guarantee. We will keep all parts as cost price for our customers. And service for all life.
Servicing:
1.Professional technical team for offering our customers professional suggestions. To get most reasonable technical for the production line.
2.Sales will follow the order and report to customer the production real situation every one week.
24 hours online-service and help customers to solve problems asap. Offer all necessary documents and manual book to customers for helping to installation HDPE LDPE PP films compactor pelletizing machine. We also offer technical to be at customer factory for installation and testing. Service whole life for our customers.
