1.Introduction of PP PE films and flakes compactor noodle type granulating machine
PP PE films and flakes compactor noodle type granulating machine is for granulating PP PE films, PP woven bags. PP injection flakes and some other PP PE materials to pellet.
It’s designed with latest technology,a very integrated system which can be used for a wide range of materials,the extruder is combined together with compactor and feeding belt,the raw material will be compacted firstly in the compactor ,then get into screw immediately,in this way,the material feeding is much more stable and the output is bigger,especially for LDPE film,PP bags and other material.The compactor equipped with cutting blades can process massive material like shopping bags,woven bags,and film in roll,no need to crush the materials in advance.With frequency control,this machine also can process rigid regrind materials.
2. PP PE films and flakes compactor noodle type granulating machine features:
1）It has compactor to crush, agglomerating materials. And press into extruder screw. To improve capacity to be more.
2）Capacity can be from 100kg/h to 1000kg/h for films and woven bags. For flakes. Capacity will be more.
3）Noodle type granulating line is working by cooling tank. This cutting type can work for most PP PE materials. Such as PP MFI 10-25. It can work perfect.
4）With non-stop hydraulic screen changer.
5）This line can be single stage or double stages as customer’s requirement.
3.Specification of PP PE films and flakes compactor noodle type granulating machine
| PP PE films and flakes compactor noodle type granulating machine | |||
| Capacity | Compactor diameter(mm) | Extruder motor(KW) | Extruder diameter(mm) |
| 100kg/h | 600 | 90 | 90/33 |
| 500kg/h | 800 | 132 | 130/33 |
| 700kg/h | 1200 | 250 | 160/33 |
| 1000kg/h | 1200 | 315 | 180/33 |
4.Details

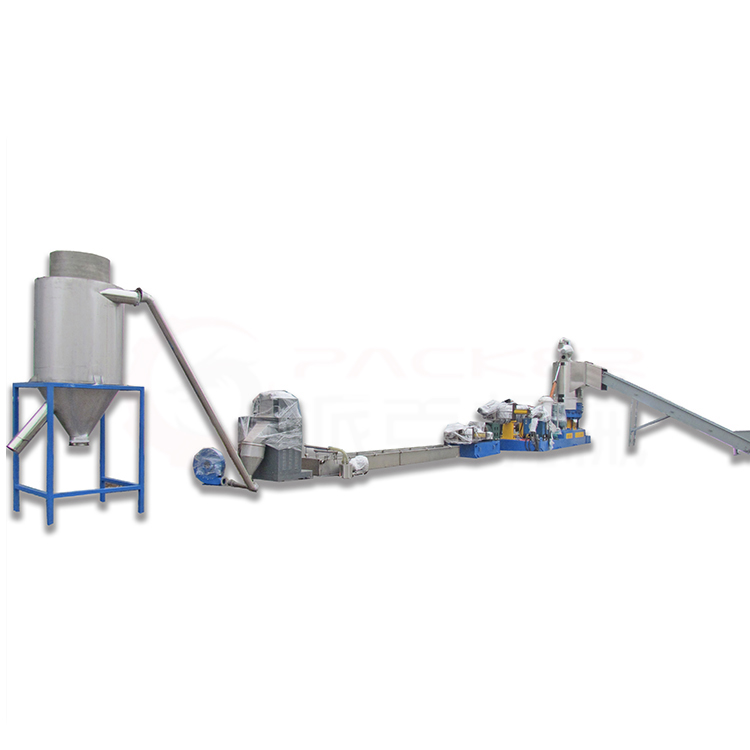

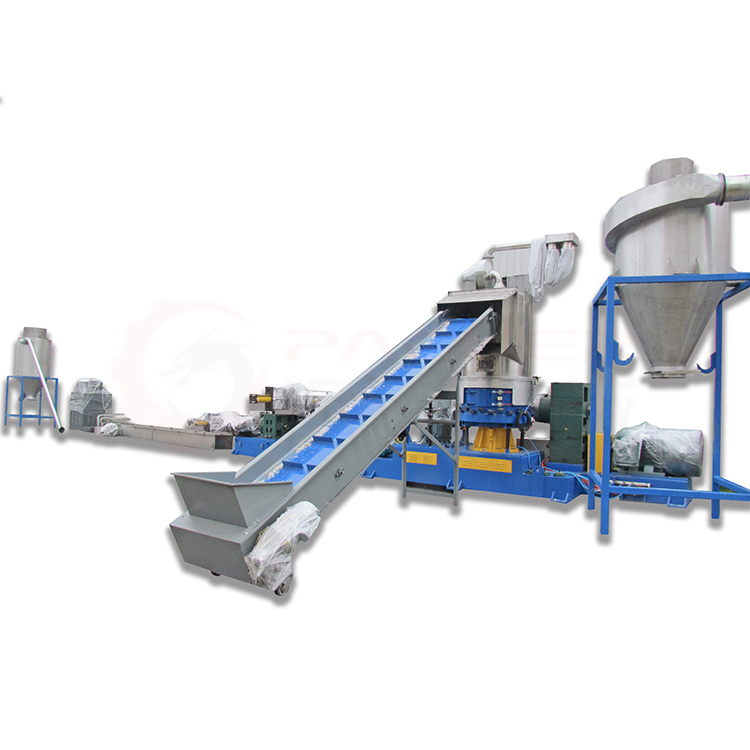

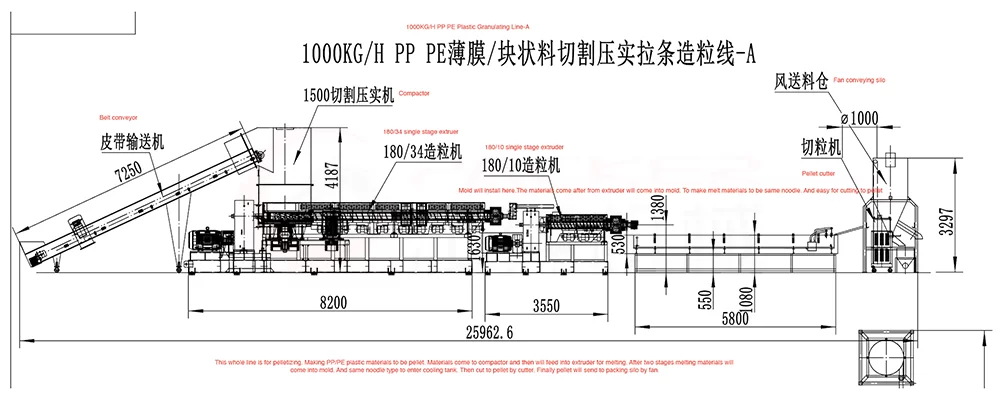

These pictures can better help you understand PP PE films and flakes compactor noodle type granulating machine
Deliver,Shipping And Serving
Delivery: 40-50 days after getting the payment.
Shipping: By sea
Service: 1 year guarantee. After guarantee. We will keep all parts as cost price for our customers. And service for all life.
Servicing:
1.Professional technical team for offering our customers professional suggestions. To get most reasonable technical for the production line.
2.Sales will follow the order and report to customer the production real situation every one week.
24 hours online-service and help customers to solve problems asap. Offer all necessary documents and manual book to customers for helping to installation machines. We also offer technical to be at customer factory for installation and testing. Service whole life for our customers.
