1.Introduction of Waste PET Bottle Crusher
Waste PET Bottle Crusher is for crushing waste PET bottle to PET flakes. It also can use to crusher ABS, PS and some other hard materials. The crusher shaft is design according to PET bottle materials specially. It can work with water. To cooling down the blade temperature.
2.Waste PET Bottle Crusher features:
1. Frame is made by solid square steel.
2. Capacity can be 300kg/h-2500kg/h.
3. Chamber is made by solid steel.
4. Screen mesh is made by 10mm thick steel.
5. Crusher open is by hydraulic system.
6. Blade materials can be SKD-II, D2 or as customer requirement.
7. Waste PET Bottle Crusher is running with water. Bearing installed outside of crusher chamber to avoid any water to come into bearing.
8. Easy operated. Stable running.
3.Specification of Waste PET Bottle Crusher
| Waste PET Bottle Crusher | |||||
| Capacity | Motor power(KW) | Fix blade(pcs) | Rotary blade(pcs) | Rotary diameter(mm) | Chamber size(mm) |
| 300kg/h | 22 | 2 | 6 | 450 | 610*660*560 |
| 500-700kg/h | 45 | 4 | 9 | 550 | 910*760*660 |
| 1000-1500kg/h | 75 | 4 | 12 | 550 | 1210*760*660 |
| 2000-2500kg/h | 110 | 6 | 15 | 650 | 1510*860*760 |
4.Details

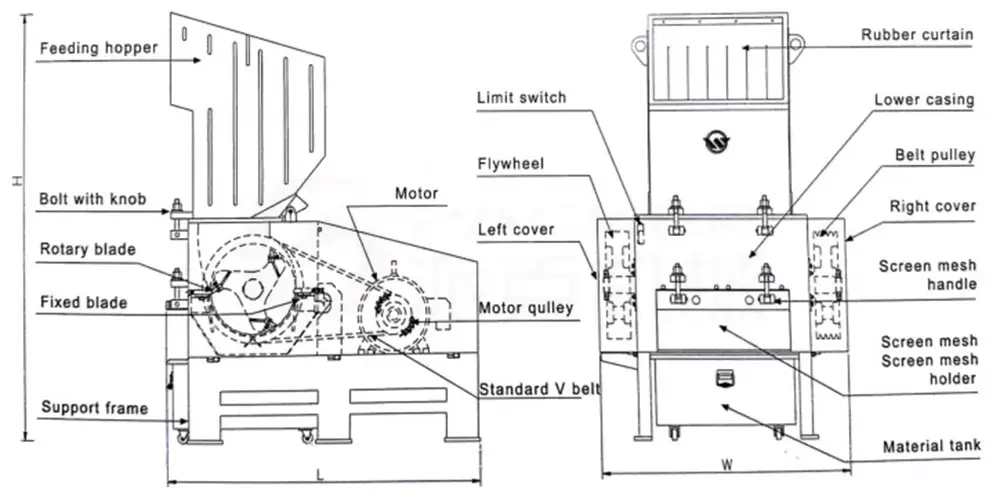

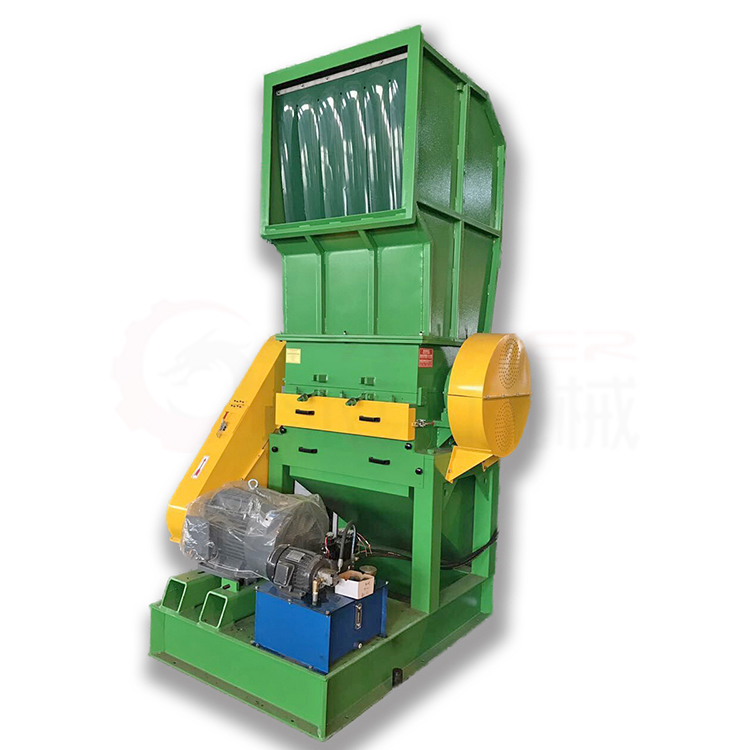

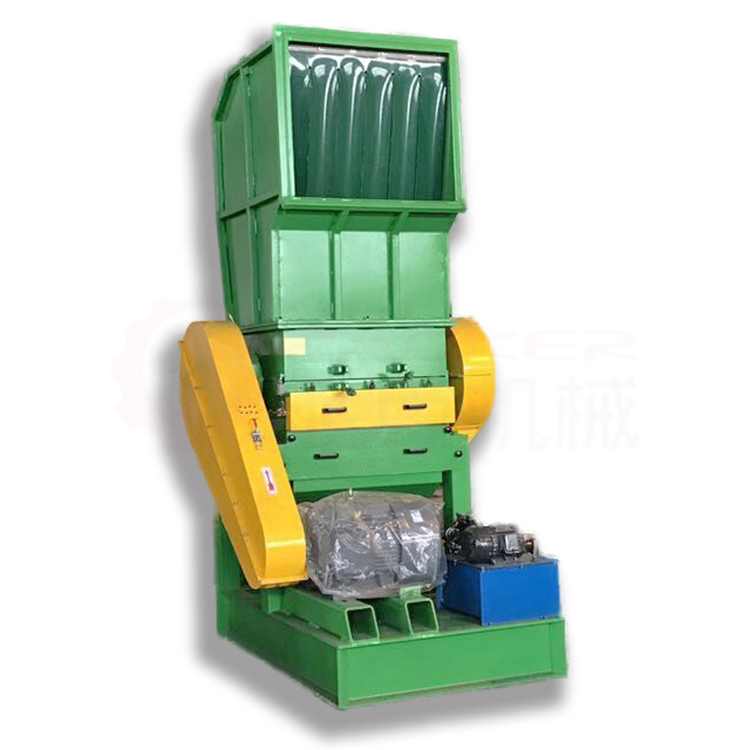

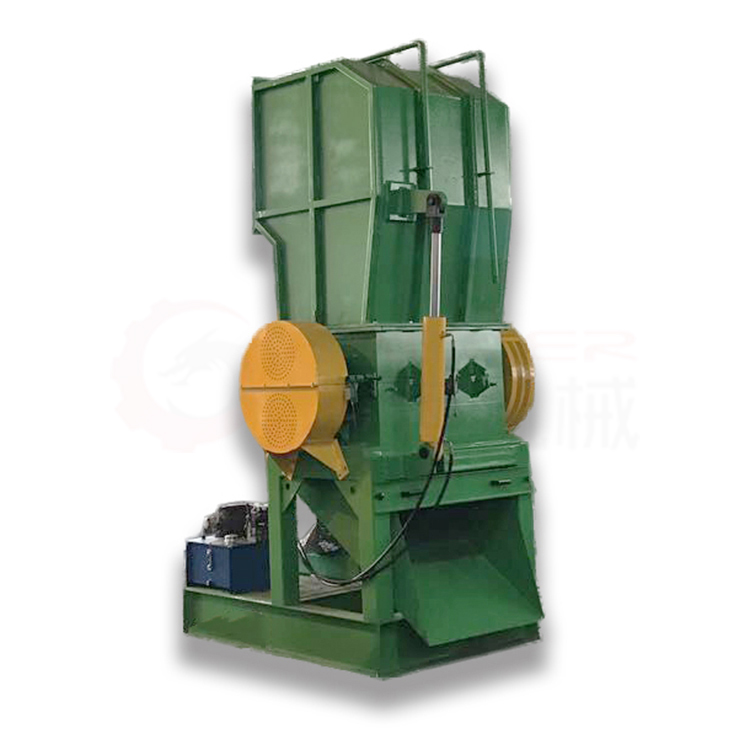

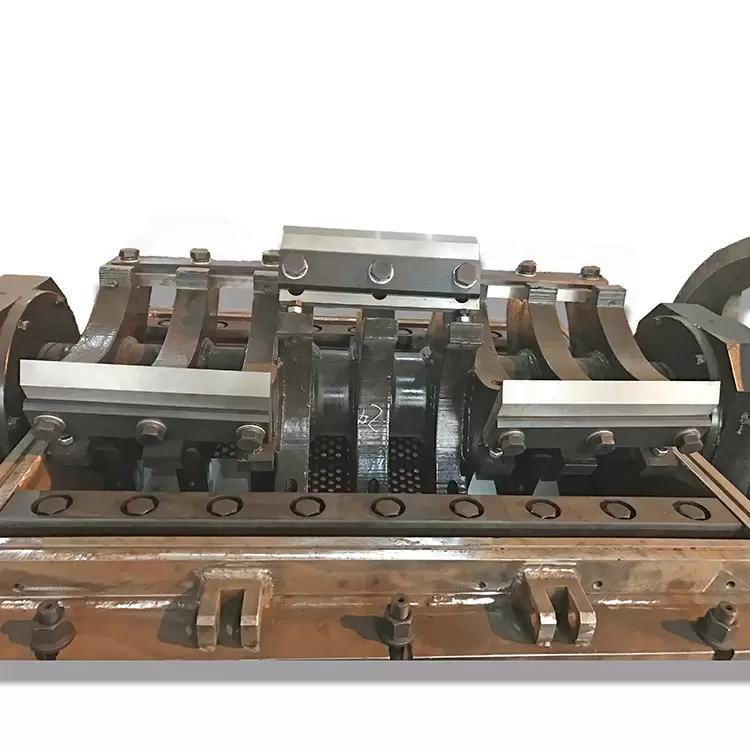

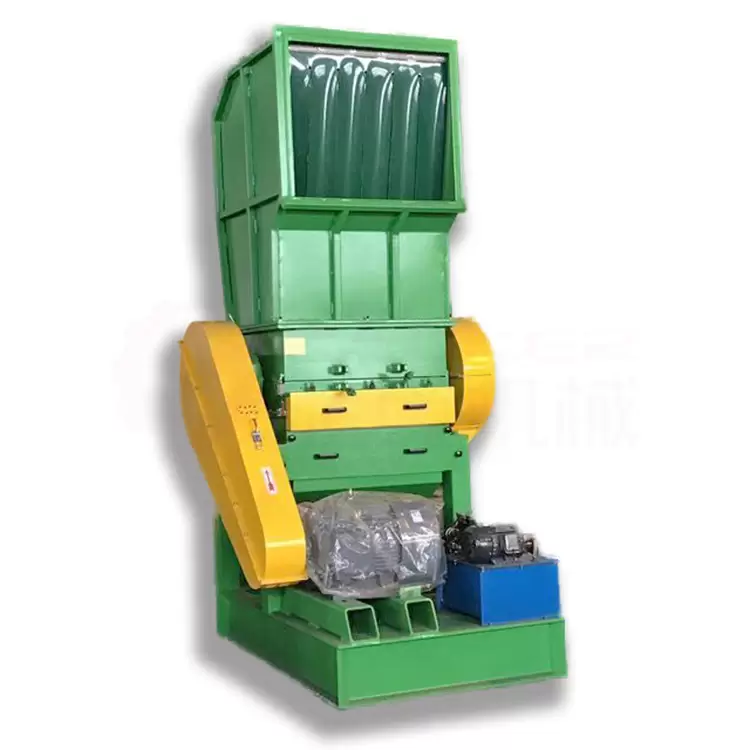

These pictures can better help you understand Waste PET Bottle Crusher
Deliver,Shipping And Serving
Delivery: 30 days after getting the payment.
Shipping: By sea
Service: 1 year guarantee. After guarantee. We will keep all parts as cost price for our customers. And service for all life.
Servicing:
1.Professional technical team for offering our customers professional suggestions. To get most reasonable technical for the production line.
2.Sales will follow the order and report to customer the production real situation every one week.
24 hours online-service and help customers to solve problems asap. Offer all necessary documents and manual book to customers for helping to installation Waste PET Bottle Crusher. We also offer technical to be at customer factory for installation and testing. Service whole life for our customers.
