Capacity: Cold compressor is used for EPS, EPP, EPE and some other materials. The pressing ratio is 1:30-1:50.
| Model | Capacity | Raw material | Remark |
| PK-CP150 | 50KG/H | EPS EPP EPE Foam | |
| PK-CP250 | 100KG/H | EPS EPP EPE Foam | |
| PK-CP380 | 200KG/H | EPS EPP EPE Foam | Belt conveyor feeding |
| PK-CP LINE | 300KG/H | EPS EPP EPE Foam | Belt conveyor feeding |
Used in middle size recycling center. Seafood market. Easy to feed the material to the hopper by hand. Processing multiple materials-packing box. Containers. Foaming box.

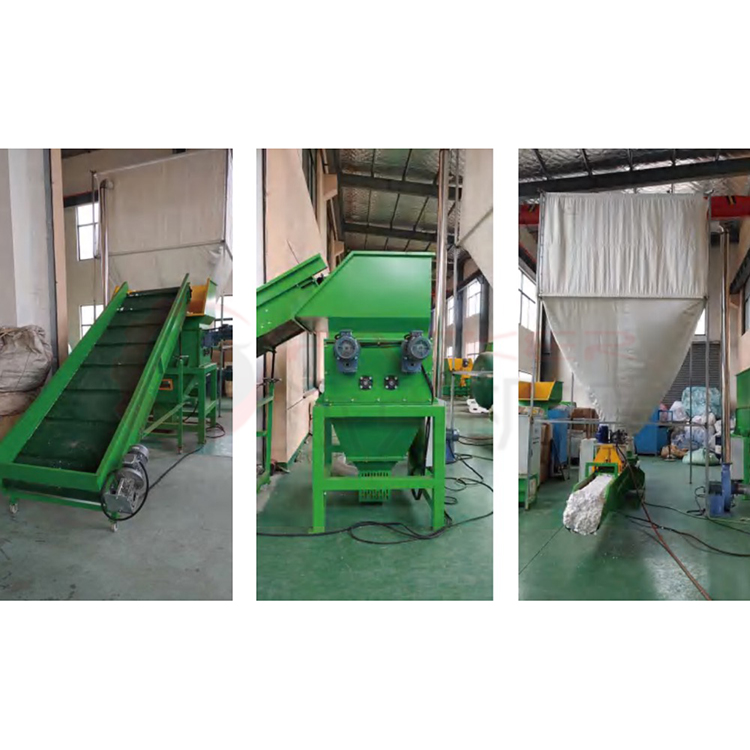

We make a special hopper which can prevent the material from coming out of the crusher tank when the machine is working. it is easy for the people or belt conveyor to feed the material inside for different capacity machines.
The crusher tank is redesigned by our engineer with more efficiency blades, bigger crusher tank. 9 blades weld on one shaft, which is drive by the chain. The blade type is like the maneuver dart, high efficiency and low noise. All the blades are in a special angle between each other, this design can press the mater down into the screw barrel to increase the capacity.
After the crusher ,the material will fall down into the barrel in small pieces ,then the material will be extruded by the screw. At the head of the barrel , there are two ceramic heaters to melt the material.

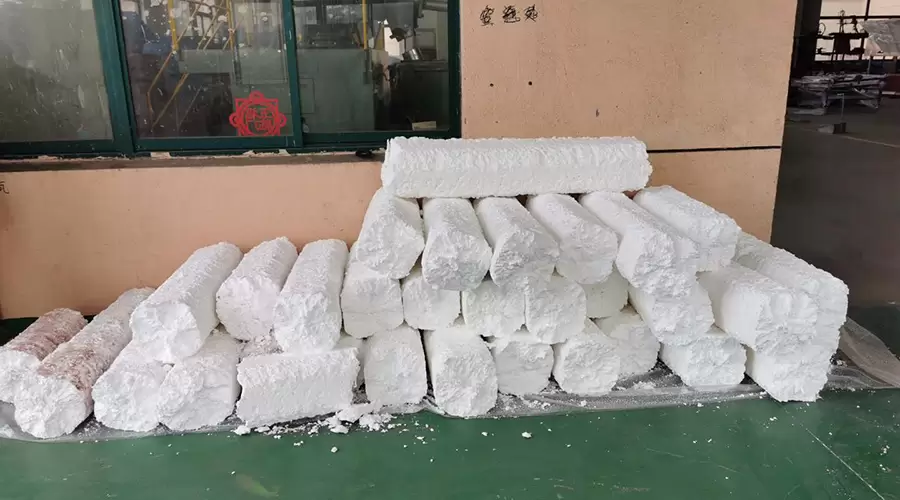

When the material comes out from the mould, it will fall down to a steel cube box with we will offer. Then you will get a cubic block of EPS, the density of the block can reach 500-600kg per cubic meter. One container can load more than 20 tons material.
Raw material selection and finished product display：
